Industrial Misting System – Patio Misting System – 250 PSI Misting Pump, Stainless Steel Tubing – For Residential. Commercial, Outdoor Restaurant and Industrial Misting Applciation (10 Nozzle System)

Product Description:

Product Description

Mid Pressure Misting System with stainless steel tubing – Made in USA

250 PSI Misting Pump with Filtration and Solenoid Valve12 Nickel Plated / Stainless Steel Orifice Misting Nozzles18 Ft, Grooved, Stainless Steel TubingDIY Installation

Misting System Applications

Misting Pump Specifications – Made in USA Misting Pump

Mist Pump Specifications:

Maximum Inlet Pressure: 100 PSIMinimum Inlet Pressure: Self-priming.Maximum Outlet Pressure: 250 PSI (depends on line length and numbers of nozzles)Maximum Flow: 0.9 GPMFull load Amps. 110V AC: 0.7 Amps12V DC: 4.0 AmpsVoltage: 110V-220V AC/ 12V DC (Refer manufacturing label on the pump)Noise Level: 40 DB.Maximum Fluid Temperature: For Room Temperature / Cold Water applications only

Parts Included in Misting System for Patio Misting

Misting Pump. Patio Misting Pump. Made in USA misting pump.

Maximum Inlet Pressure: 100 PSIMinimum Inlet Pressure: Self-priming.Maximum Outlet Pressure: 250 PSI (depends on line length and numbers of nozzles)Maximum Flow: 0.9 GPMFull load Amps. 110V AC: 0.7 Amps12V DC: 4.0 AmpsVoltage: 110V-220V AC/ 12V DC (Refer manufacturing label on the pump)Noise Level: 40 DB.Maximum Fluid Temperature: For Room Temperature / Cold Water applications only

Mist Tubing. Stainless Steel Tubing for misting systems.

Rated at 2000 PSI1/4 Inch ODStainless Steel 316Rust ProofWith Grooves for Push Lock Fittings

Misting Nozzle. Misting head for misting systems.

0.012 Inch – Low PressureStainless Steel construction – corrosion resistant10/24 Thread SizeRecommended Pressure: For low pressure misting systems (40 -100 PSI)Full cone pattern spray 60-70 degrees0.031 GPM (Gallons Per Minute) at 1000 PSI

Mist Tubing for patio misting systems

1/4 Inch OD.170 Inch ID0.040 Inch Wall ThicknessUV TreatedUse for Misting Systems and Mosquito Misting SystemsRated for up to 300 PSIDoes not crack or leakMinimum burst pressure – 300 PSI at 75 Degree F

Misting System and Misting Fan System.

Combine the best of the two mistcooling systemsA patio misting system with outdoor misting fanMistcooling systems

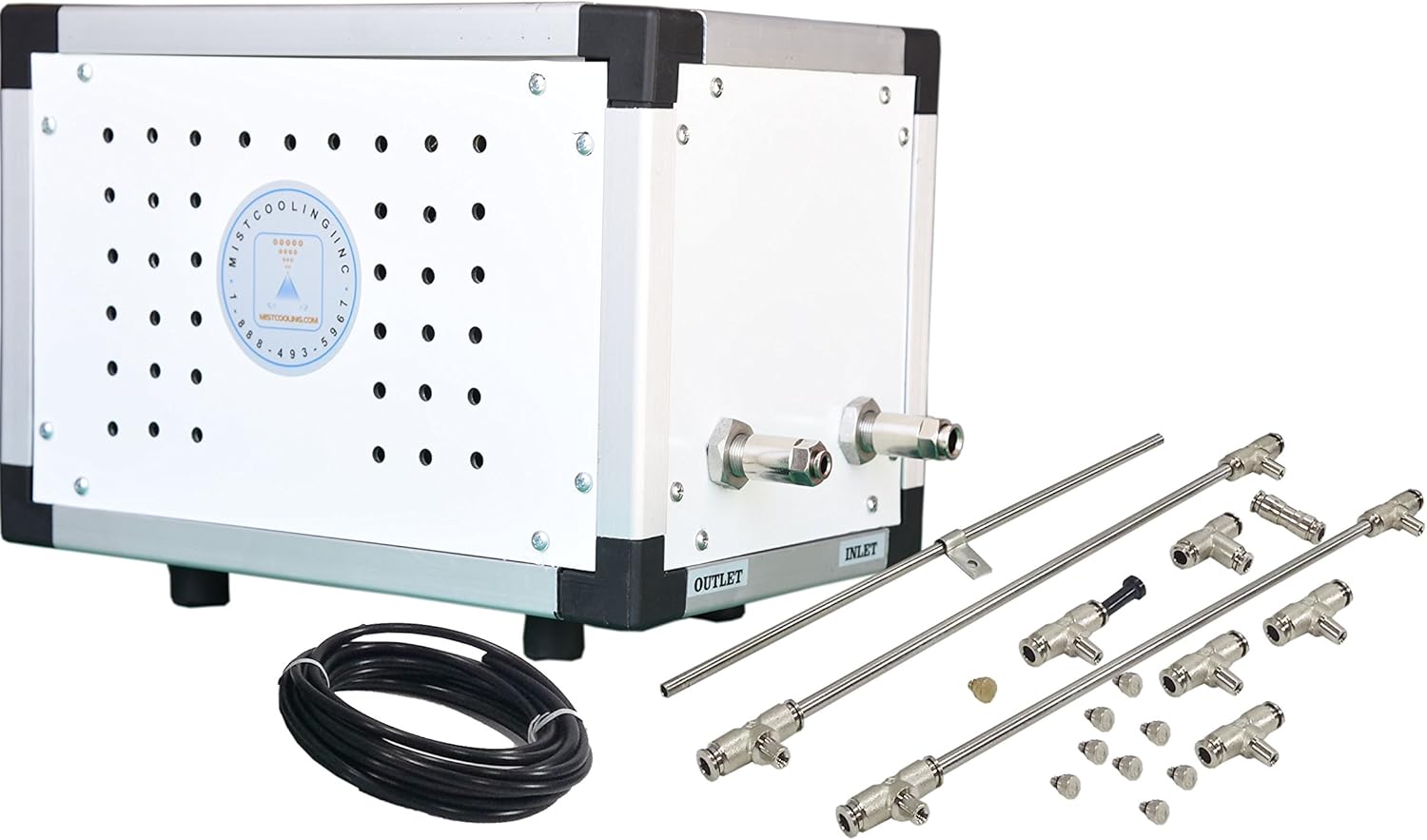

[ Made in USA – Misting Pump ] Base 10 Nozzle Stainless Steel Mist Kit Includes: 250 psi mid-pressure pump with built-in solenoid and filtration 18ft Stainless Steel tubing for push lock (Pre-cut 2ft sections) 22ft UV coated Flexible 1/4″ feed line 10- Nickel Plated Push Lock Misting Tees 1- End plug 2- Nozzle plugs 10- Nickel plated brass/stainless steel Nozzles (0.012″) Stainless Steel Mounting Clamps and all necessary fittings required for easy D-I-Y installation

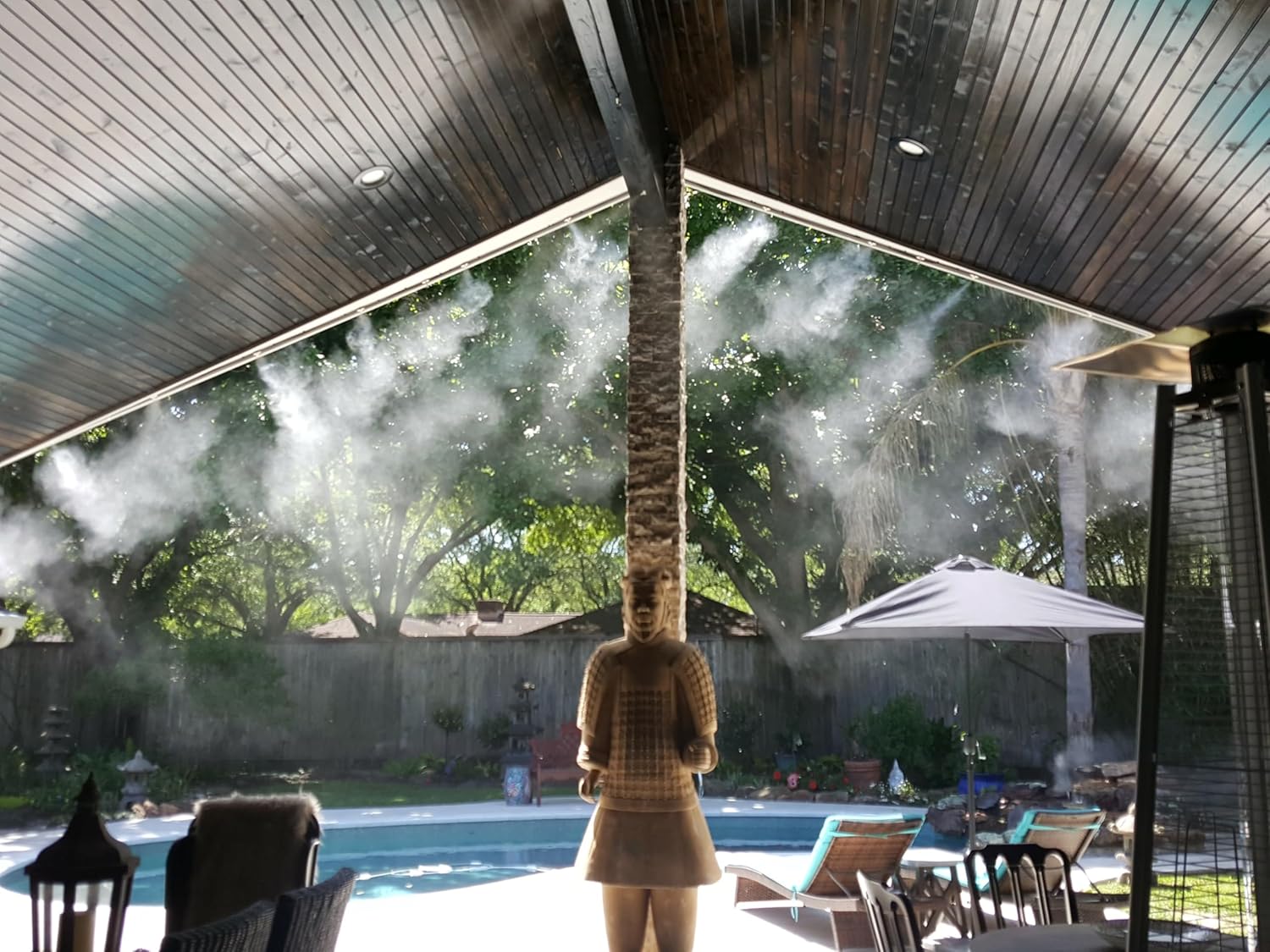

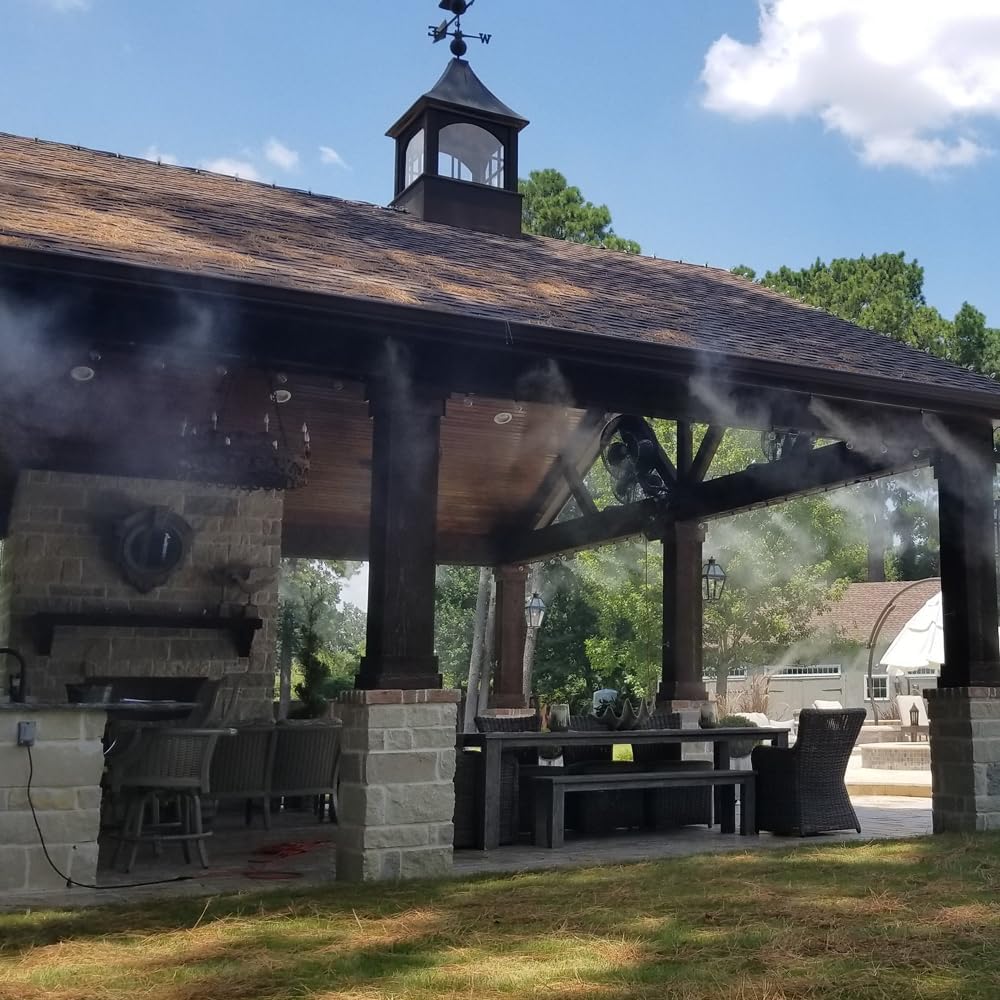

[ Applications ]: Residential Patio Misting Greenhouse Humidification Commercial Outdoor Cooling Outdoor Restaurant Misting Industrial Misting Animal Cooling Outdoor Kitchen Cooling
[ Misting Pump Features ]: Stainless Steel Mist Line Whisper quiet operation Built-in Solenoid Valve Built-in Filtration Outdoor Enclosure Wall Mountable Steel Enclosure Max Pump Pressure 250 Psi 110v AC Supports up to 30 nozzles Cleanable Brass-Stainless Steel ultrafine misting nozzles Reusable high-pressure push lock fittings Stainless Steel Clamps
[ Do it yourself misting system] : Easy to install, with Push to Connect Nickel plated fittings | Rated for 1800 PSI.
[ Misting Pump Features ]: Stainless Steel Mist Line Whisper quiet operation Built-in Solenoid Valve Built-in Filtration Outdoor Enclosure Wall Mountable Steel Enclosure Max Pump Pressure 250 Psi 110v AC Supports up to 30 nozzles Cleanable Brass-Stainless Steel ultrafine misting nozzles Reusable high pressure push lock fittings Stainless Steel Clamps

Product Summary:

Item Details:

Products Reviews:

Reviewer: ThDink
Rating: 1.0 out of 5 stars
Title: I would not recomend this system
Review: The straight unions that came in the kit do not grip the black Teflon or the stainless-steel tubing at all. I had to use my own stainless-steel tubing to deliver the high-pressure water to the system. The mist Tees do not hold well either and it is a struggle to get them to seal, and stay sealed after the pressure has been turned off. I was forced to use Swagelok fitting to alleviate constantly recurring leaks at each union. In the end it cost an additional $250 in replacement parts/materials to get the system to operate reliably.
