Product Description:

Product Description

About Us

Founded in the family basement in 1939, Zoeller Pump Company is one of the oldest family-owned water pump manufacturers in North America. Over the past seven decades, Zoeller Pump Company has established itself as a dependable leader in the wastewater industry. Through continuous research and development, we are always improving our products and processes to provide the highest possible quality to our loyal customers and end users.

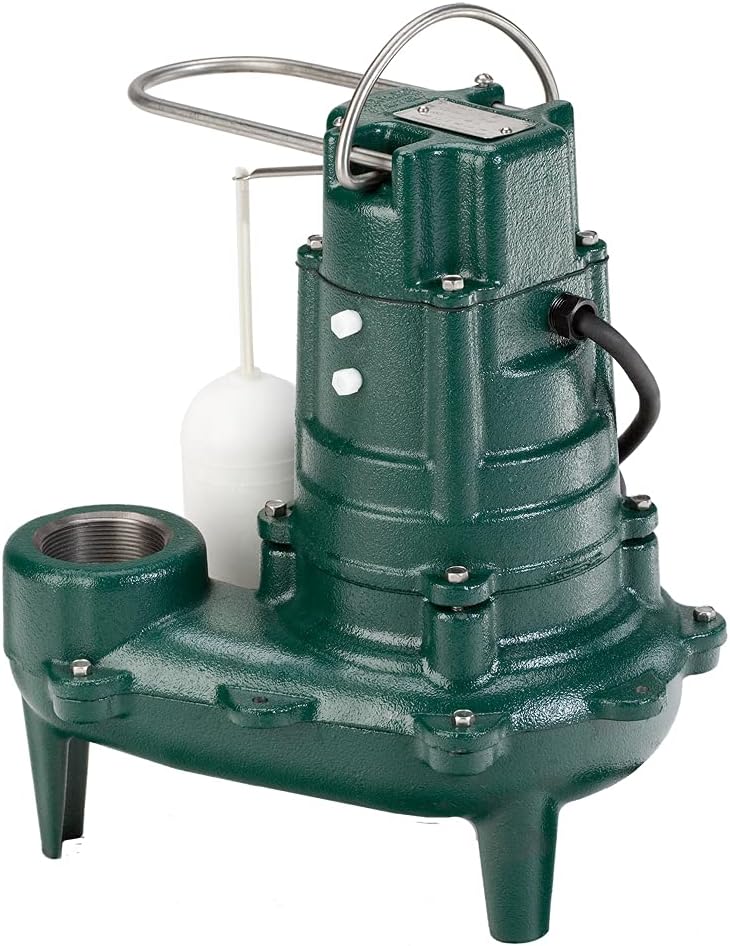

Zoeller Waste-Mate 267 Sewage Pump

HEAVY-DUTY SUBMERSIBLE SEWAGE, EFFLUENT OR DEWATERING PUMP

Zoeller Waste-Mate 267 is considered one of America’s most popular sewage ejectors and is known for reliability, durability, and performance. Each sewage pump is industry-proven and constructed using cast iron and stainless-steel hardware with an integral, 2-pole, snap-action float switch. The heat-dissipating cast iron body has a powder coated epoxy finish that provides maximum pumping performance under the most extreme conditions, a cool run design, and a non-clogging vortex impeller.

Made in the USA using a majority of US content 1/2 HP submersible sewage pump, 100% factory tested Automatic and non-automatic options available 2″ NPT discharge, passes 2″ spherical solids Performance: 128 GPM at 5′ TDH, shut-off: 21.5′ TDH Cast iron construction

Waste-Mate 267 Specifications

Zoeller Waste-Mate 266 sewage pump has an engineered plastic base, while Zoeller Waste-Mate 267 sewage pump has a cast-iron base. Each model has a non-clogging vortex design that utilizes either a plastic or cast-iron impeller to disintegrate and pass solids up to 2” (spherical).

All pumps are completely submersible, hermetically sealed to be watertight and dust-tight, and utilize stainless steel components, such as screws, bolts, handle, guard and arm,

and seal assembly. The shaft seal is manufactured from carbon and ceramic, while the square ring and gasket are Neoprene. Both Zoeller Waste-Mate 266 and 267 sewage pumps are ideal for residential, commercial, and new construction uses, and have a powder coated epoxy finish that provides maximum pumping performance under the most extreme conditions.

Superior Performance, Reliability, & Durability

Zoeller Waste-Mate 266 and 267 are ideal for:

Residential Sewage and DewateringLight Commercial Sewage and DewateringNew ConstructionWastewater/Lift Stations

2” NPT discharge1/2 HP2” (50 mm) spherical solids capacityCast iron impellerAvailable in 3 phase voltages

Motor: 1/2 HPVoltage: 115-460 VHertz: 60 HzRPM: 1,750 RPMInsulation: Class B

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

4.5 out of 5 stars 916

4.2 out of 5 stars 101

3.1 out of 5 stars 7

Price

$451.25$451.25 $420.00$420.00 $998.99$998.99

Motor
1/2 HP 4/10 HP 1/2 HP

Construction
All Cast Iron Cast Iron with engineered plastic base All Cast Iron

Electrical
115v 115v 115v

Amps
10.4 9.4 7

Discharge
2” 2″ 1-1/4″ or 2”

Grinds Material
No No Yes

Made in the USA
Zoeller Waste-Mate 267 0001 is a heavy-duty submersible sewage, effluent, or dewatering automatic pump with 1/2 HP
Ideal for residential & commercial use; Passes 2″ spherical solid waste with plastic impeller

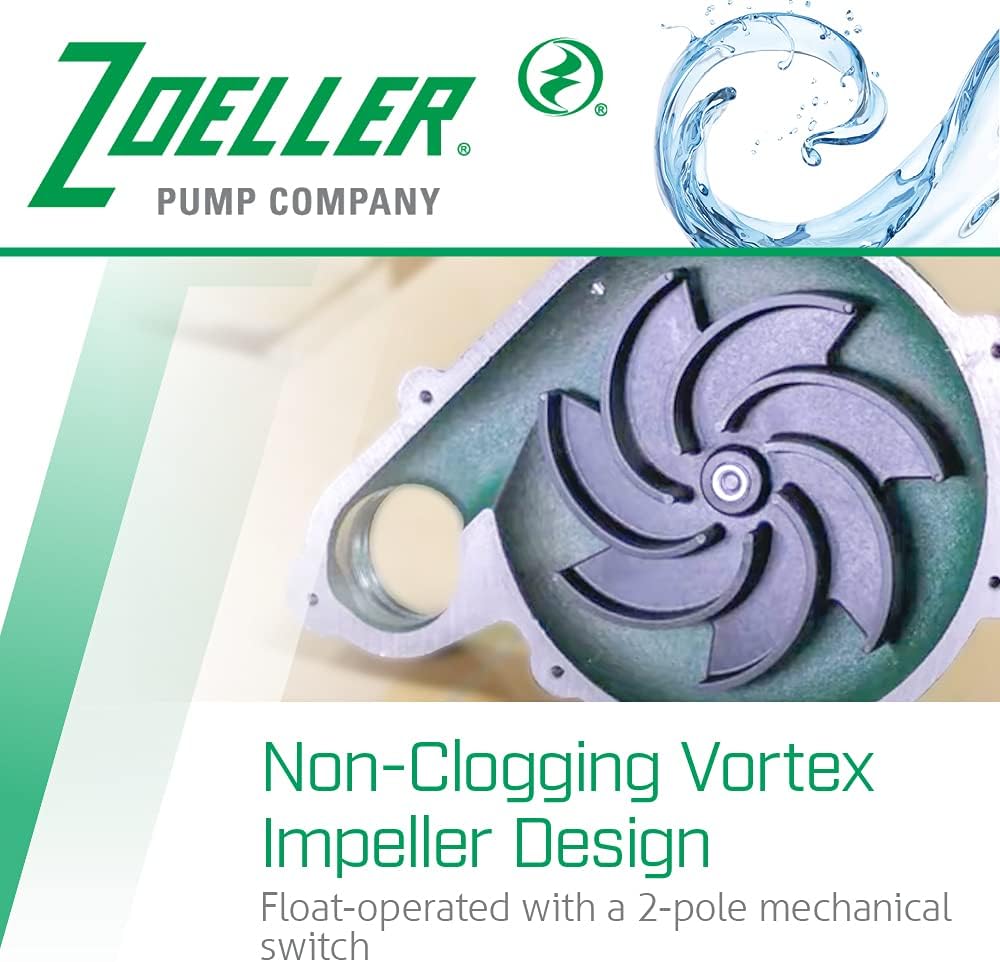

Float-operated sewage pump with a 2-pole mechanical switch & non-clogging vortex impeller design

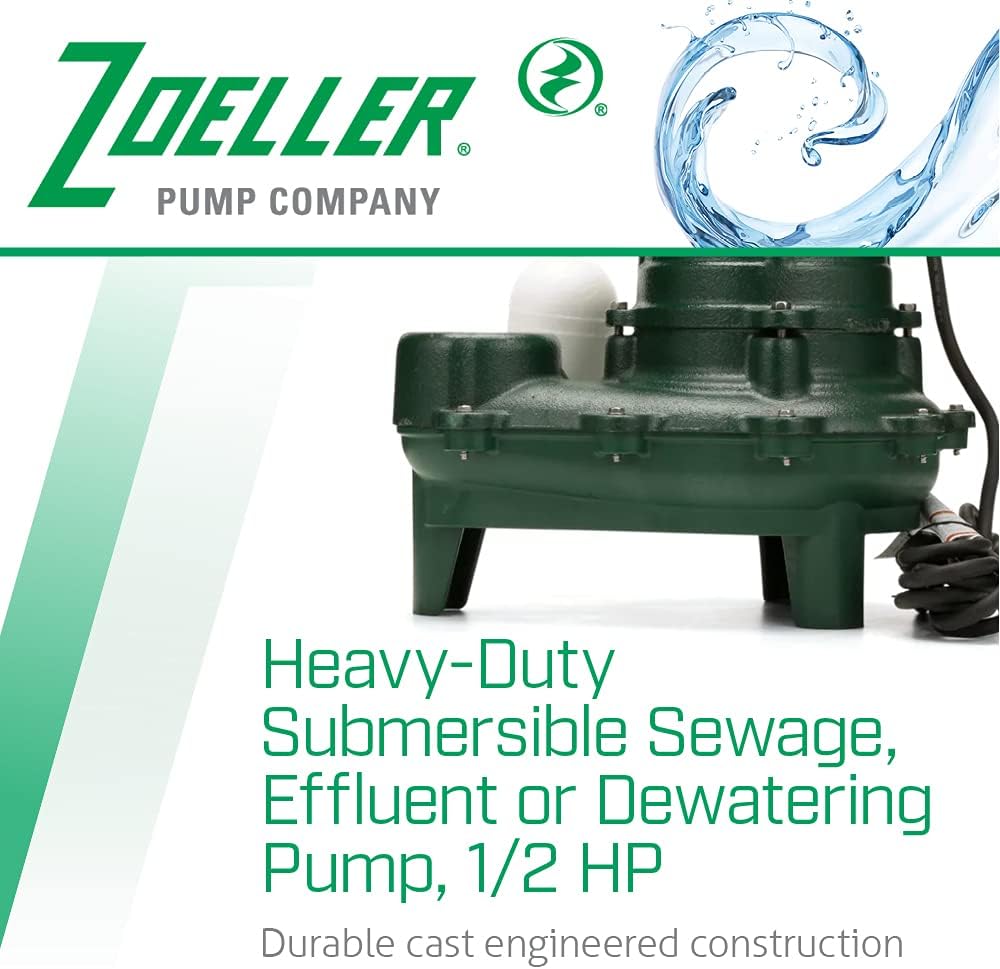

Durable cast engineered construction utilizes ASTM Class 25 cast iron for switch case & pump housing
Automatic discharge with integral float switch is completely submersible, watertight, & dust-tight

Product Summary:

Item Details:

Products Reviews:

Reviewer: Robert
Rating: 5.0 out of 5 stars
Title: High Quality, Durable and Effective Pump That’s Easy For the Homeowner to Install
Review: Extremely heavy and durable. The pump looks and feels solid made. Item arrived on time and well-packaged. The pump’s 85 gal/min flow rate was more than enough to handle my basement bathroom’s shower, sink and toilet. The pump was easy to install with very good instructions and diagrams to aid you in proper installation. The pump functioned flawlessly and I was surprised at the quiet operation and how quickly it drained the sump tank.While this pump may not be the cheapest one out there, Zoeller is known for its quality and durability. I highly recommend this pump for those reasons.
Reviewer: kershner
Rating: 5.0 out of 5 stars
Title: Very reliable and long lasting.
Review: Expensive and worth it. The original lasted 30 years. The motor wouldn’t start. I didn’t bother to troubleshoot the failure. Previously, the original had one switch replacement, about ten years ago. This new unit is identical to the original. I expect it will last three decades too. I know the photo is nasty looking to some, just appreciate the person that replaces these.
Reviewer: Wolf_22
Rating: 5.0 out of 5 stars
Title: Fantastic Pumps!
Review: I live in a 1920s-era home in Brazil, Indiana. The property has an exceedingly high water table and I’ve used these pumps to keep my basement dry (I don’t use them for sewage–just my basement sumps). The oldest one I own I installed back in like 2012 or 2013, and it’s still working flawlessly. The newer one–of the same model–handles my basement perimeter drain and as I type this, it’s kicking on almost every 10 or 15 seconds due to a major rain that we’re currently getting (2-3″ worth).I can’t say enough good stuff about these pumps.Word of advice: Make sure to drill the little 3/16ths weep hole about 2 fingers above the discharge port and do whatever you can to make sure your exit line has long-arch angles to push through for any turns your exit line has to make as it’ll reduce noise and vibration. My current pumps push up about 5-6′ before leveling and going out of the house. Doing this means the pipe uses the floor joists for suspension before exiting the home. If you do this, don’t disregard the amount of noise the pump will reverberate throughout the home because unless you have a special way to suspend the pipe, you’ll hear a lot of noise from the pipe and the pump. (Which is perfectly normal, but the solution isn’t a new pump but rather, a better installation of the exit line that most people need contractor help to do right.)Overall, these pumps are amazing and well worth their expense.
Reviewer: William M. Bruce
Rating: 4.0 out of 5 stars
Title: Good powerful pump!
Review: I bought this pump as a replacement for my sewage sump. The one that I replaced was the exact same model as this. It lasted for 8 years and was pretty reliable. I kinda expected it to last longer. Towards the end the switch was starting to fail and the sump would over flow. I was able to manually get it to go. Overall, I would recommend this pump for purchase as the switch can be replaced for cheap. I plan to repair the old pump and keep it for a spare.
Reviewer: DBrem
Rating: 5.0 out of 5 stars
Title: Works quietly
Review: Easy to install as a replacement for worn out 30 year old Zoeller
Reviewer: Shannon
Rating: 5.0 out of 5 stars
Title: Good quality
Review: Worked perfect
Reviewer: Gregory Pool
Rating: 1.0 out of 5 stars
Title: Failed after a few months
Review: Bought this top of the range pump specifically for longevity and performance.Pump failed after a few months. Pump was very clean, no sign of damage.Had to buy a replacement.Amazon/Manufacturer will not refund. Very disappointed.
Reviewer: Amazon Adam
Rating: 5.0 out of 5 stars
Title: Excellent sewage pump, quality construction!
Review: This is an excellent sewage pump that I purchased for a basement bathroom. It is made in the USA, great quality instruction and ease of use. Zoeller is the defacto “Porsche” standard when it comes to sewage pumps. It has a 2″ output so you must be able to have your stack be able to accommodate that. Do not reduce to a 1.5″ as it is not a good idea if and when you get clogs. I highly recommend this sewage pump and you not be disappointed for MANY years to come.**Update October 2024** I purchased another one of these Zoller pumps for my home, the previous purchaser was for another location. I don’t regret purchasing this pump and had to provide another update because I love this pump so much! My previous purchase was a cheapy version that I opted for because I thought it would do it’s job, and it did for 10 years. I’m hoping to have this pump last longer than that, as it is the highest quality pump available out there. Very simple to install if you have the correct tools and could be easily done in 1-2 hours without any effort.Once again, second time around, I HIGHLY recommend this pump to prevent any issues and peace of mind. Also look for deals online as you can find this pump for a bit less if you search, but if not it’s available here on Amazon, of course.
Reviewer: Richard Brown
Rating: 5.0 out of 5 stars
Title:
Review: Pump is an upgrade from what I was using and it is doing exactly as it is supposed to do. Very sturdy and so far reliable.
Reviewer: Israr Rashid
Rating: 4.0 out of 5 stars
Title:
Review: It’s a good pump. Very quite and good built. The only thing I don’t like is the backward flow of water when the pump stops every time.
Reviewer: Jan Demke
Rating: 1.0 out of 5 stars
Title:
Review: Horrible pump! I’ve replaced an old pump which has been working for 30 years with that Zoeller and automatic switch got broke in 2 weeks so pump would keep running while there was no water. Amazon sent a replacement and the second one stopped working even in shorter period . Need a replacement as again, but guess will pick another brand this time
